MATE
Portable and agile ROV for versatile offshore inspection, survey, and scientific applications with high payload capacity and precise positioning

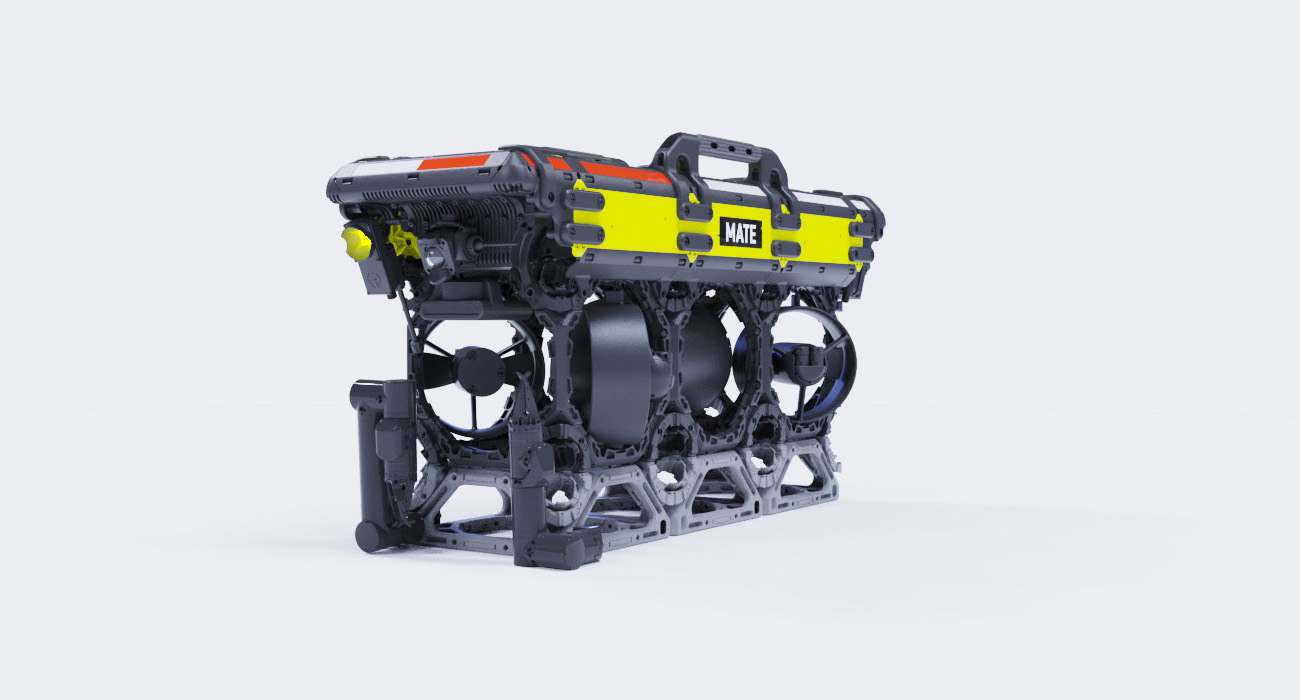

MATE is a portable, highly adaptable remote operated vehicle (ROV). Its high payload capacity and agility are unique in its class, enabling an extremely wide range of applications in the offshore sector.
- Underwater inspection
- Observation offshore
- Survey on port infrastructure
- Scientific exploration
- Mission with small vessels
- Cost effective
- Portable
- Easy deployment
- Minimal setup
- Lower power consumption
- Medium payload capacities
Basic configuration & extensions
Basic
- topside unit with power supply, monitor and pilot software
- manual tether management system
- tether – hybrid coax-cable for power supply and data
- ROV with:
- main unit (controller and power supply)
- 6 thruster
- full hd cameras (180 degree field of view)
- led spots
- dvl
Extensions
- electric tether management system
- tether – hybrid fiberoptic cable
- latch lock (for launch and recover)
- inertia navigation system
- forward locking sonar
- manipulators
- 4k cameras
- Laser
Technical specifications
Dimensions (LxWxH)
1250 x 435 x 675
mm
Depth Rating
300
m
Deadweight in air
50*
*300m depth rating
kg
Thrust
horizontal 45 vertical 30
kgf
Speed
> 2
kt
Sensors
Depth; Temperature; Motion sensing IMU magnetic nort; DVL; FHD cameras
Power
Input Deck unit: 400 VAC (50 Hz); Input ROV: 800 VDC – max. 6.5 A; High Power Output ROV: nom. 48 VDC – max. 20 A; Low Output ROV:12, 24,36,48 VDC – max. 5 A
Data
Umbilical: 1 GB Ethernet over COAX [max. range 700 meter]; (optional 10 GB Ethernet over Fiberoptics); ROV: 1gbit Ethernet
MATE in action
Rough use takes its toll: offshore, it’s not a question of if something will break, but when. The problem arises when spare parts are not readily available. Fortunately, 80 % of MATE’s components can be printed within 24 hours and delivered to you in no time.
Damage is inevitable, but downtime is not.


Designed to handle change.

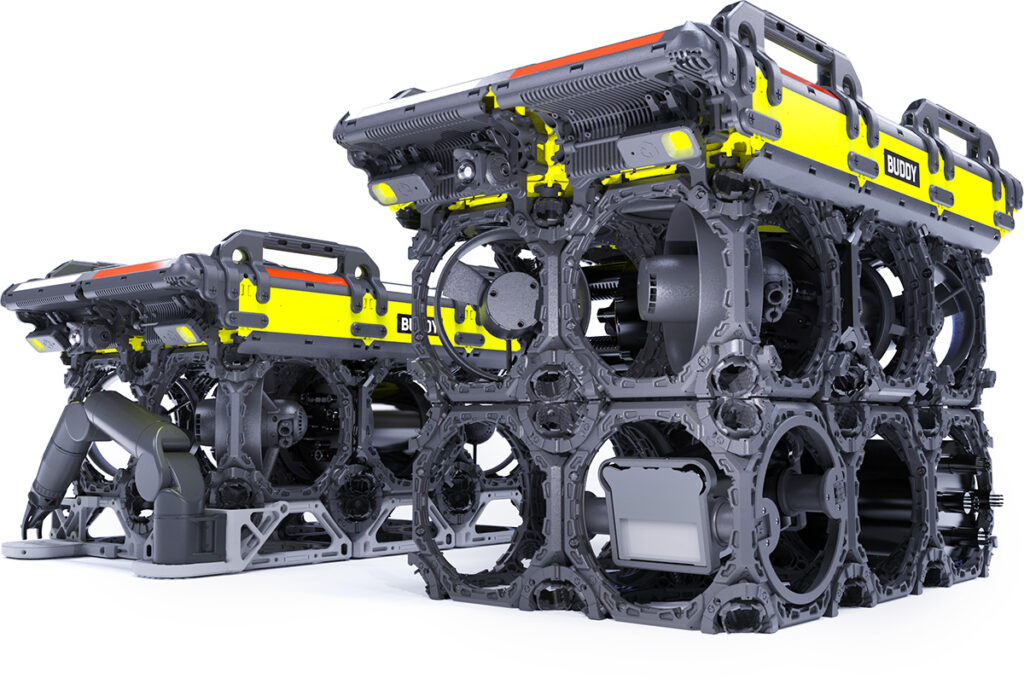

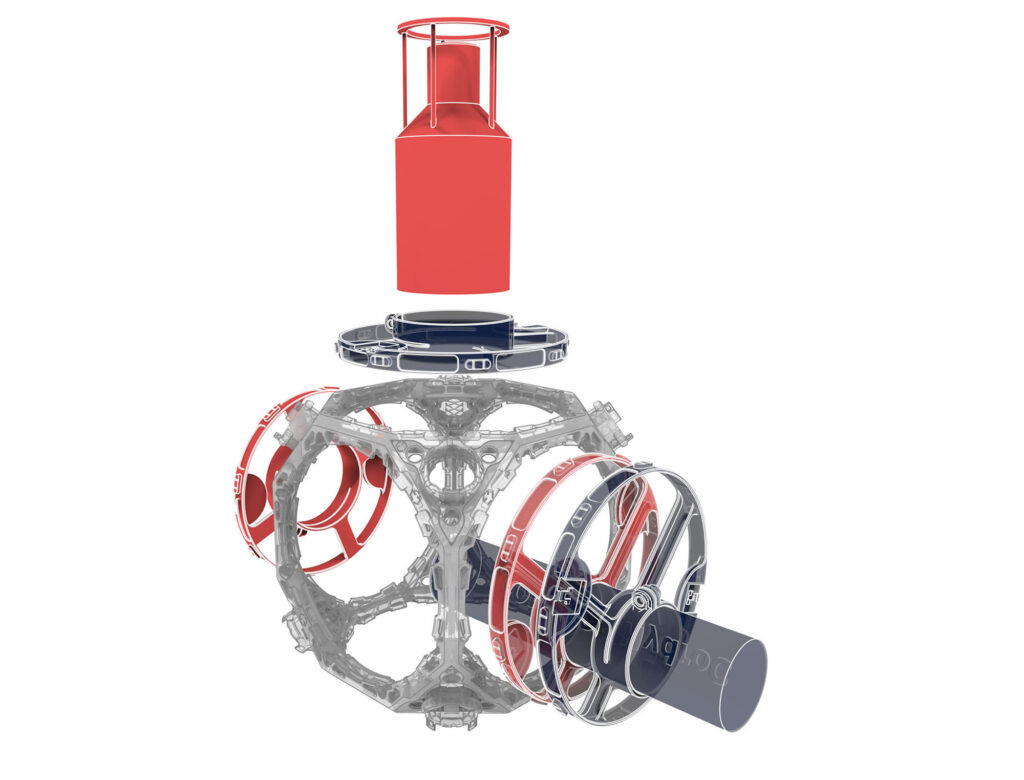

What you deploy today is just the beginning. Thanks to its modular architecture, you can adapt, extend, or reconfigure your system solution if your requirements change – there’s no need to replace it!


Chris weiß wies läuft. Ruf ihn an.
MATE is a great choice, but there is always something more to exlore
