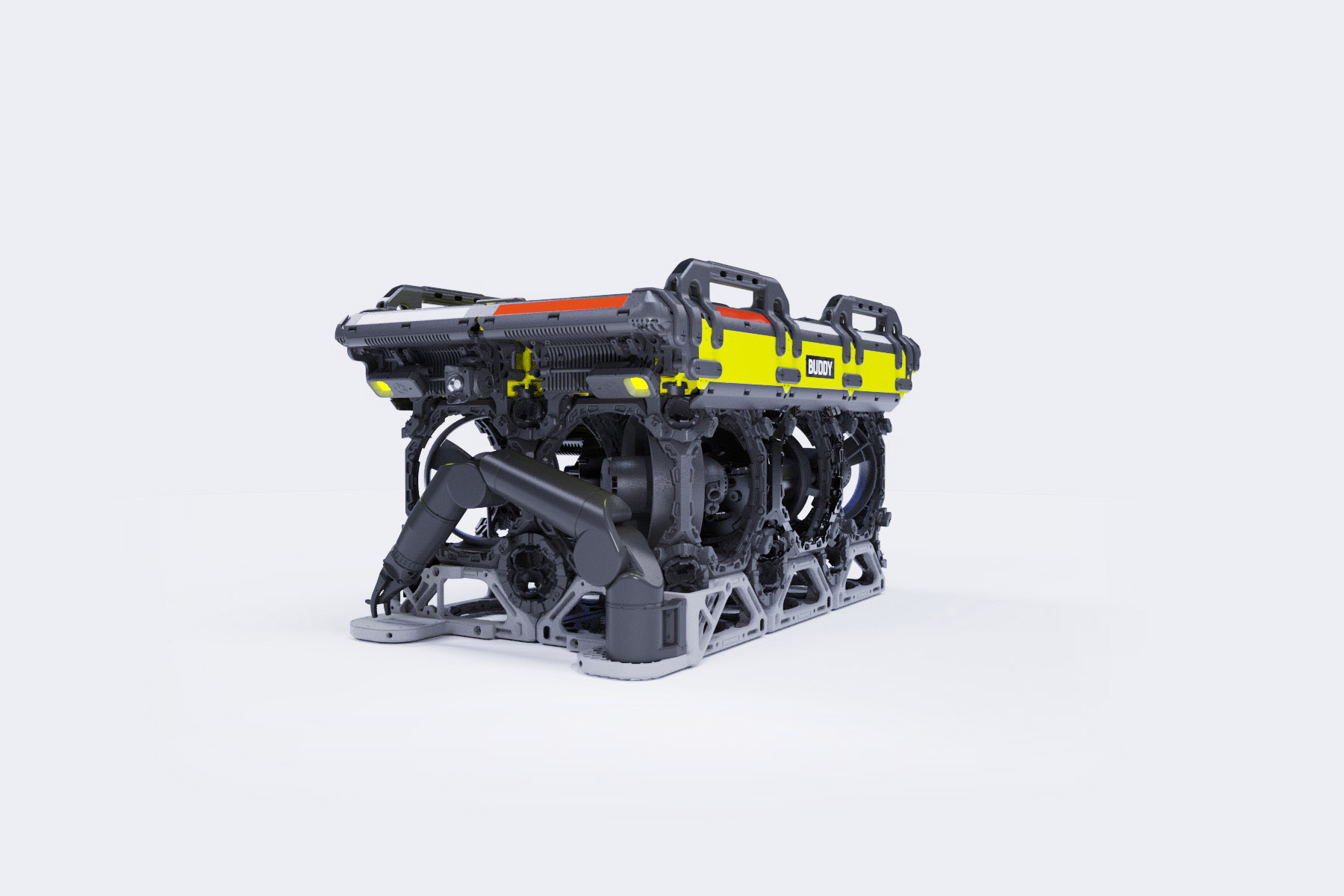

BUDDY
adaptable ROV for offshore inspection, monitoring, repair, survey tasks, and scientific exploration
BUDDY is a powerful, highly adaptable remote operated vehicle (ROV). Its high payload capacity and thrust are unique in its class, enabling an extremely wide range of applications in the offshore sector.
- Underwater inspection, maintenance and repair (IMR)
- Observation offshore
- Survey on port infrastructure
- Scientific exploration
- Mission with medium vessels
- Highly maneuverable
- High payload capacity
- Wide range of interfaces
Basic configuration & extensions
Basic
- topside unit with power supply, monitor and pilot software
- manual tether management system
- tether – hybrid coax-cable for power supply and data
- ROV with:
- main unit (controller)
- power unit (power supply)
- up to 8 thruster
- full hd cameras (180 degree field of view)
- led spots
- dvl
Extensions
- electric tether management system
- tether – hybrid fiberoptic cable
- latch lock (for launch and recover)
- inertia navigation system
- forward locking sonar
- manipulators
- 4k cameras
- Laser
Technical specifications
Dimensions (LxWxH)
1250 x 715 x 675
mm
Depth Rating
300
m
Deadweight in air
95 / 110*
*including 2nd C260-level
**300m depth reating
kg**
Payload
10 / 42*
*including 2nd C260-level
kg
Thrust
horizontal 70 vertical 30/45***
***8 Thruster konfiguration
kgf
Speed
>2,5
kt
Sensor
Depth; Temperature; Motion sensing IMU magnetic nort; DVL; FHD cameras
Power
Input Deck unit: 400 VAC (50 Hz); Input ROV: 800 VDC – max. 12 A; High Power Output ROV: nom. 48 VDC – max. 25 A; Low Output ROV:12, 24,36,48 VDC – max. 5 A
Data
Umbilical: 1 GB Ethernet over COAX [max. range 700 meter]; (optional 10 GB Ethernet over Fiberoptics); ROV: 1gbit Ethernet
BUDDY in action
Rough use takes its toll: offshore, it’s not a question of if something will break, but when. The problem arises when spare parts are not readily available. Fortunately, 80 % of BUDDY’s components can be printed within 24 hours and delivered to you in no time.
Damage is inevitable, but downtime is not.


Designed to handle change.
What you deploy today is just the beginning. Thanks to its modular architecture, you can adapt, extend, or reconfigure your system solution if your requirements change – there’s no need to replace it!
