Compact and modular towed sensor platform for efficient subsea and water column observation

Build COMPANION with an expert

COMPANION is a remotely operated towing vehicle (ROTV). It is a hydrodynamically optimised, compact and truly portable sensor platform designed for surveying and observation missions. COMPANION is particularly well suited for deployment from small vessels as well as USVs. Thanks to its modular design, the towed vehicle’s payload capacity and range of functions can be quickly adapted to new challenges.



Best Suited For
  • Critical infrastructure observation
  • Seabed and water column observation
  • Scientific applications
  • Mission with small and medium vessels
Why this configuration
  • Cost effective
  • Portable
  • Maneuverable
  • Lowest power consumption
  • Medium payload capacities
  • Wide range of interfaces

Basic configuration & extensions

Basic

  • topside unit with power supply, monitor and pilot software
  • ROVT with:
    • main unit (controller and power supply)
    • up to 4 hybrid flettner actuators
    • full hd cameras (180 degree field of view)
    • led spots
    • dvl with altimeter

Extensions

  • inertia navigation system
  • forward locking sonar
  • 4k cameras
  • Laser

Technical specifications

Dimensions (LxWxH)

2350 x 1360 x 675

mm

deadweight in Air

85*
*300m depth rating

kg

Depth Rating

300

m

Towing Speed

0,5 – 5

knots

Payload

15*
*including 2nd C260-level

kg

Thrust

vertical 40

kgf

Sensor

Depth; Temperature; Motion sensing IMU magnetic nort; DVL; FHD cameras

Power

Input Deck unit: 400 VAC (50 Hz); Input ROV: 400 VDC – max. 4 A; High Power Output ROV: nom. 48 VDC – max. 10 A; Low Output ROV:12, 24,36,48 VDC – max. 5 A

Data

Umbilical: 1 GB Ethernet over COAX [max. range 700 meter]; (optional 10 GB Ethernet over Fiberoptics); ROV: 1gbit Ethernet

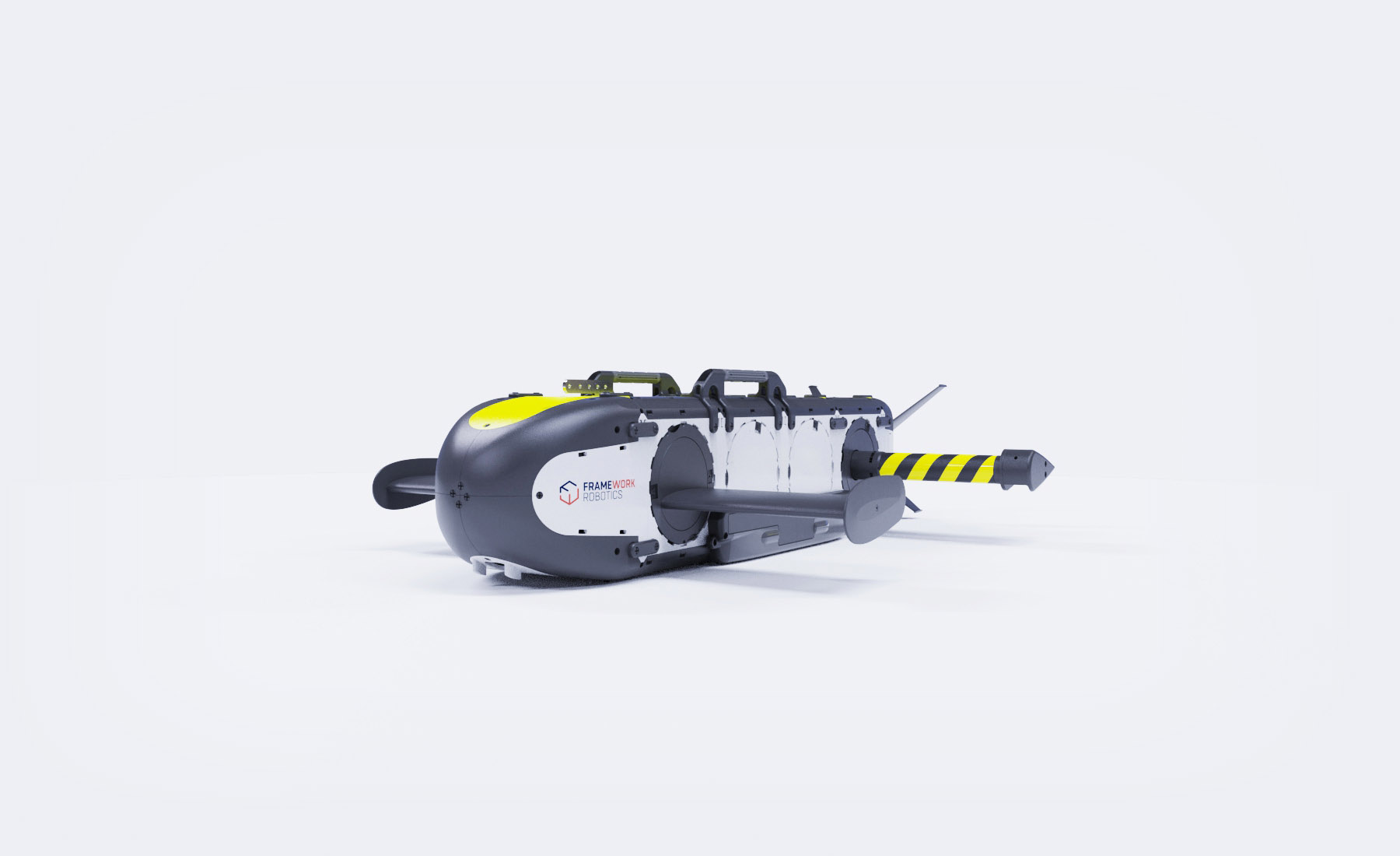

Companion Final
REAL-WORLD MISSIONS

COMPANION in action

Developing innovative offshore technologies under realistic field conditions

Fast and reliable UXO detection under real offshore conditions. COMPANION enables flexible sensor integration, rapid adaptation to changing requirements, and cost-efficient deployment even from small vessels.

System: COMPANION ROTV
Application: Sensor testing
Capability: Rapid payload exchange, modular setup
Environment: Baltic Sea, offshore test field
Customer: Fraunhofer IGD

More missions ahead

We're out in the field. New challenges, new deployments, and new success stories are on the way.

System:
Application:
Capability:
Environment:
Customer:

Rough use takes its toll: offshore, it’s not a question of if something will break, but when. The problem arises when spare parts are not readily available. Fortunately, 80 % of COMPANION’s components can be printed within 24 hours and delivered to you in no time.

ALWAYS READY

Damage is inevitable, but downtime is not.

GROWS WITH YOU

Designed to handle change.

What you deploy today is just the beginning. Thanks to its modular architecture, you can adapt, extend, or reconfigure your system solution if your requirements change – there’s no need to replace it!

Customer Opinion on COMPANION ROTV

We are proud owners of a COMPANION. We chose it because existing ROCVs were often too large, costly, and limited in their applications. COMPANION fills a clear gap in the market by providing a flexible and efficient solution for hydrographic surveys and marine research. Thanks to its outstanding modularity, it can investigate both the seafloor and the water column, while significantly reducing time, manpower, and maintenance costs.



Dr. Daniel Stepputtis

Senior Scientist & Leader of Fisheries and Survey Technology Group

Thünen Institute of Baltic Sea Fisheries

Customer Opinion on BUDDY ROV

Dive into the future with BUDDY – a compact sized inspection or light work class system – the pinnacle of adaptability and modularity in ROV technology. Unleashing unmatched payload capacity and depth range, BUDDY is not just a sensor platform; it’s a game-changer, offering agility, programmable interfaces, and a personalized MISSION CONTROL experience.



Andreas Pinsker

Founder & CEO

CEO ROV Expert, France

Customer Opinion

The modular and adaptive approach of FRAMEWORK ROBOTICS’ technologies is the perfect complement to our portfolio. The developed solutions meet the dynamic demands of scientific research and can be adapted flexibly to new application scenarios.

This provides a significant time and resource efficiency advantage, which is particularly important in the rapidly evolving field of ocean engineering.



M.Sc. Louis Fotiadi

Research Assistant, Chair of Ocean Engineering

University of Rostock

Customer Opinion

We enjoy working with FRAMEWORK ROBOTICS because the modular design of their system solutions and the short decision-making processes enable them to perfectly meet our specific requirements.



M. Sc. Robert Mars

Leader of Marine Measurement Technology Group

Leibniz Institute for Baltic Sea Research Warnemünde
